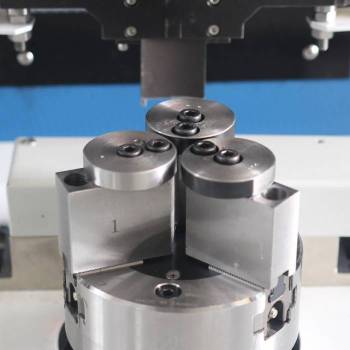

Automatic Drilling Dynamic Balancing Machine

Home/ Marketing Products/ Balancing Machines /Automatic Drilling Dynamic Balancing Machine

Automatic Drilling Balancing Machines


Manual loading or unloading.

12 inch touch screen.

Advanced balancing software.

Automatic measuringdrilling and retesting.

Twice correction or more can be excuted by removing-weight.

Rigid bed-structure design ensures long service life

It is widely used to balance clutch flywheel pulley pump impeller etc

Technical Specification

Single-Station Auto-Drilling Balancing Machine

Parameters of Balancing Unit
Mass of Workpiece(kg) 35(clamp included)
Max Height of Workpiece (mm) 200
Max Diameter of Workpiece (mm) 400
Balancing Speed(r/min) 800
Motor Power(kw) 1.5
Min Achievable Residual Unbalance Amount ( 3
Drilling Unit
Drilling Speed(r/min) 1500 frequency conversion
Cutting Spindle Motor Power(kw) 0.75
Max Allowed Correct Times 2
Machine Parameter
Machine Motor Power(kw) 7
Machine Weight(ton) 1.5
Dimensions(mm) 950*1700*2000
Pressure(Mpa) 0.4-0.8
Processing Period(s/pcs) 25-35
