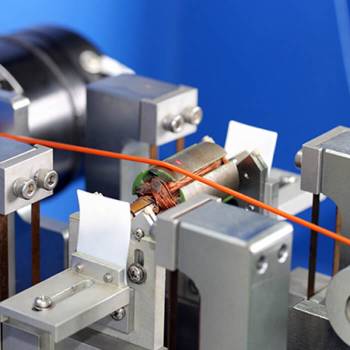

PRQ Series soft bearing balancing machines are specially designed for high precision dynamic balancing test of micro-motor rotors.
The system adopts DC variable speed drive devicerealize stepless speed regulation
Bracket system uses soft bearing structurehigh sensitive sensorwhich achieve higher measurement accuracy.
Equip with advanced measuring system.Friendly man-machine interfaceeasy operation.It's highly praised by majority of end-users
PRQ-0.5A/1.6A/5/16 Soft Bearing Balancing Machine
| Technical data at a glance | PRQ-0.5A | PRQ-1.6A | PRQ-5 | PRQ-16 |
|---|---|---|---|---|
| Max Mass of Workpiece(kg) | 0.5 | 1.6 | 5 | 16 |
| Max Diameter of Workpiece (mm) | Ø150 | Ø150 | Ø150 | Ø150 |
| Distance Between Two Support Bearings (mm) | 20-320 | 20-320 | 20-320 | 20-320 |
| Journal Diameter Scope of Workpiece (mm) | 2-10 | 2-10 | 2-16 | 2-16 |
| Maximum Diameter of Driving Belt (mm) | Ø60 | Ø60 | Ø60 | Ø60 |
| Balancing Speed (r/min) | ~14701) | ~14701) | ~14701) | ~14701) |
| Motor Power (kw) | 0.05DC | 0.05DC | 0.2DC | 0.2DC |
| Min Achievable Residual Unbalance Amount (emar) | ≤0.1g·mm/Kg | ≤0.1g·mm/Kg | ≤0.1g·mm/Kg | ≤0.1g·mm/Kg |
| Power Supply | AC220V,Single-phase,50HZ | AC220V,Single-phase,50HZ | AC220V,Single-phase,50HZ | AC220V,Single-phase,50HZ |
PRZQ-0.3A/1.1 Double Driven Balancing Machine
| Technical data at a glance | PRZQ-0.3 | PRZQ-1.1 |
|---|---|---|
| Max Mass of Workpiece(kg) | 0.3 | 1.1 |
| Max Diameter of Workpiece (mm) | Ø40 | Ø80 |
| Distance Between Two Support Bearings (mm) | 7-44 | 15-110 |
| Journal Diameter Scope of Workpiece (mm) | 1.5-10 | 2-12 |
| Maximum Diameter of Driving Belt (mm) | 40 | Ø70 |
| Motor Power (kw) | 0.1DC | 0.2DC |
| Min Achievable Residual Unbalance Amount (emar) | ≤0.15g·mm/Kg | ≤0.15g·mm/Kg |
| Power Supply | Single-phase 220V 50HZ | Single-phase 220V 50HZ |
