Fully considering the balance precision of the whole components.the auatomatic series balancers can effectively eliminate the vibration caused by the bearing parts and other assembly errors.
Specially designed hard bearing bracket can expand the measuring range and reduce the failure rate.
Customized special fixturesdue to the use of fasr chuck fasreningcan be perfectly applied to the assembly dynamic balance.
Rapid detection and measuring systemwith high precision automatic de-weight mechanismcan be highly done products testing and de-weight efficiently.

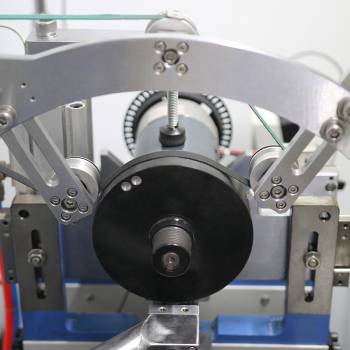

Motor Assembly Automatic Balancing Machines
| Parameter | |
| Weight of Rotor(kg) | 5-50 |
| Diameter of Support Shaft (mm) | 80-120 |
| Milling Cutter Diameter (mm) | 100-150 |
| Milling Cutter Thickness (mm) | 25-40 |
| Min Achievable Residual Unbalance Amount (emar) | ＜5g· mm/kg |
| Unbalance Reduction Rate by One Time | ＞90% |
| Special rotor need to be confirmed with engineer Processing period:35s （it will change accoring to weight.material.dimension） |
|
| Configuration | |
| Balancing Machine and Measuring System | ABE |
| Drilling Engaging Motor | 0.75kw Panasonic Servo Motor |
| Drilling Spindle Motor | 0.75kw |
| Cylinder | SMC |
| Drilling Track | ShangYin |
| Main Driven Motor | Taiwan Hankun |
| Vacuum Cleaner | Suzhou Deico |
