Manual loading and unloading.
15-inch touch screen.
Advanced balancing measuring software.
Automatic measureautomatic milling and correctionautomatic retest.
Rigidity structure designwith a longer use life.
The machine is designed for the automatic balancing of disc-shaped parts in one plane.

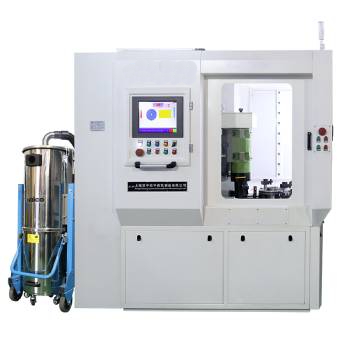

Automatic Vertical Balancing Correction Machine
| Data Rotors | |
| Max Mass of Workpiece(kg) | 35 |
| Max Diameter of Workpiece (mm) | 400 |
| Balancing Unit Parameter | |
| Spindle Speed (r/min) | 800 |
| Motor Power(kw) | 2 |
| Min Achievable Residual Unbalance Amount (emar) | 3g· mm/kg |
| Unbalance Correction | |
| Maximum Milling Depth(mm) | Depending on rotor |
| Maximum Milling Width(mm) | Depending on rotor |
| Cutting Speed(r/min) | 700 |
| Cutting Spindle Motor Power(kw) | 2.2 |
| Maximum Milling Angle(degree) | 0-75 |
| Milling Cutter Range(mm) | 60-125 |
| Machine Parameter | |
| Power(kw) | 10 |
| Weight(ton) | 1.8 |
| Dimensions(mm) | 900*2300*2030 |
| Processing Period(s/pcs) | 30-50 |
